| Name: | Planetary Stranding Cable Making Machine | Type: | Planetary Shape |
|---|---|---|---|
| Bobbin Sizes: | 315,400,500,630 Etc | Material: | Copper, Aluminum Wire And Steel Wires |
| Inverter: | SIEMENS | PLC: | SIEMENS |
| Motor: | SIEMENS | Machine Color: | Optional |
| Highlight: | Planetary Stranding Cable Making Machine,PLC Stranding Cable Making Machine,315mm Bobbin Planetary Stranding Machine |
||
Planetary Stranding Cable Making Machine 315mm Bobbin Size
1. Usage
It is used for back twisting stranding of steel core aluminum wires , aluminum alloy wires , copper / aluminum wires , insulated wires and control cables .
2. Main Character
2.1. Back-twist method : planetary mechanism.
2.2. The non-axle thimble twisting cage is equipped with mechanism friction tension control.
2.3. The transmission shafts link all the machine parts together to keep stable stranding pitch, which can also be chosen frequency synchronization to control the machine.
2.4. The machine is widely used, and manipulated conveniently with low-noise.
3. Configuration
Pay-off, mainframes of 6-reel section, 12-reelbsection, 18-reel, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.
4. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Diameter of single wire | Copper | φ1-1.6 mm | φ1-4 mm | φ1.2-5 mm | φ1.5-5 mm |
| Aluminum | φ1.2-2 mm | φ1.2-4 mm | φ1.4-5 mm | φ2.0-5 mm | |
| Maximum stranded conductor OD | φ14 mm | φ28 mm | φ35 mm | φ45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 | |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 | |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 | |
| Rotate Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min | |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min | |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T | |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW | |
| Bobbins | 315 mm | 400 mm | 500 mm | 630 mm | |
| Center Pay-off Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm | |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm | |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm |
1100 mm
|
|

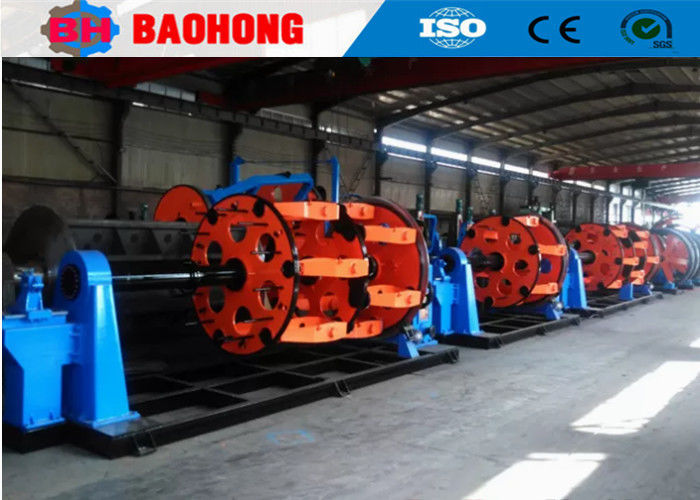

5. Photo

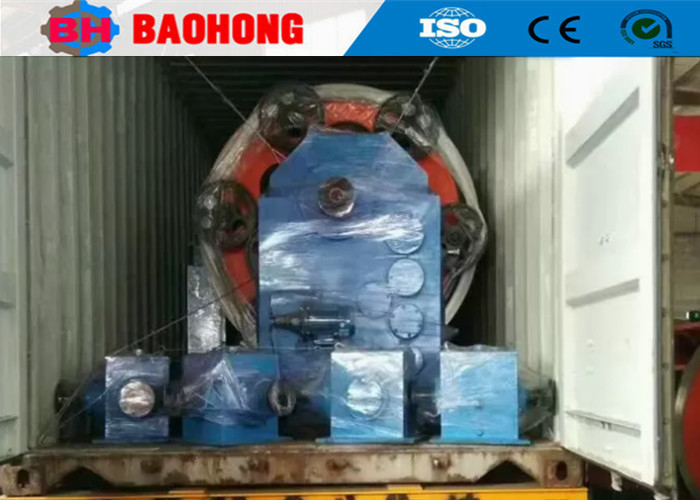

6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, Baohong Electrical Machinery has been relying on the care and support of customers, committed to the research and development of stranding machine and laying-up machine, and has made great progress. Now, we have become the only assembly line processing factory in China that can develop and produce JLK rigid strander series. We have also independently developed JGB bow skip strander line, CGB Bow skip cable wiring line and CLY high speed cradle cable laying line.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
