Product Details:
Payment & Shipping Terms:
|
| Name: | Skip Type Stranding Machine For Twisting Cable Conductor | Usage: | Skip Type Wire Stranding |
|---|---|---|---|
| Materials: | Steel & Carbon Bow | Rotation Speed: | 1000 RPM |
| Bearing Brand: | SKF;NSK | PLC,touch Screen: | SIEMENS |
| Color: | Optional | Guarantee Time: | 12 Months Guarantee |
| Highlight: | Combined Tubular Strander Machine,Twisting Cable Tubular Strander Machine,Skip Type Wire Stranding Machine |
||

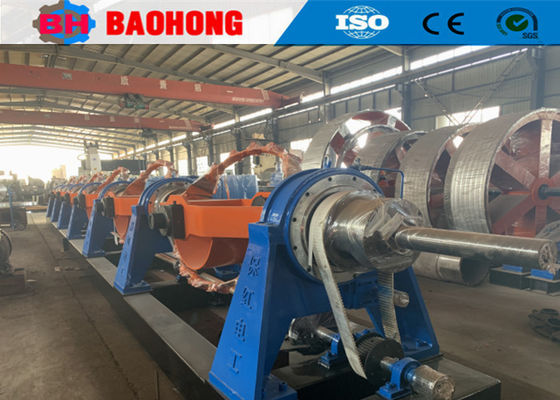

Combined Skip Type Stranding Machine For Twisting Cable Conductor
1. Application
High speed tubular type stranding machine is used for stranding steel wire, aluminum wires and copper wire as well as cabling the control cables.
2. Feature
2.1. The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.
2.2. Bobbin is clamped by disc springs and released by pneumatic device..
2.3. Wire-break and emergent stops provided for all the line
2.4 .The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.
3. Technical datas
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
4. Brand of main components
4.1 Bearings useSchneider
4.2 Motors use China Siemens brand
4.3 AC inverter use Siemens brand
4.4 PLC uses Siemens brand
4.5 Touch screen uses Siemens brand
4.6 Main low voltage electrical parts use Schneider products
5. Photo
6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
