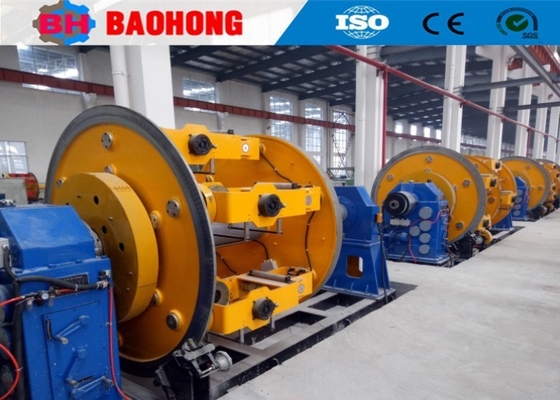

OD 35mm Cage Type Planetary Stranding Machine For Wire Cable

Cage Type Planetary Type Stranding Machine for Wire Cable

1. Usage

This machine is mainly used for stranding Cu, Al conductor, ACSR and core of insulation cable etc. It’s also can be used for Cu wires screening.

The equipment adopts the form of planetary 360° back-torque, the back-torque gears are all finished and ground, which greatly reduces the noise decibel of the equipment.

2. Main Components

2.1 Pintle type pay-off stand                                         1 set

2.2 Manual pay-off stand                                              1 set

2.3 # shape wire guiding stand                                     1 set

2.4 Stranding cage each                                               1 set

2.5 Wire assembly die seat                                           4 sets

2.6 Non-metal taping device                                          1 set

2.7 Electric & mechanical meter counter                       1 set

2.8 Dual capstan device                                                1 set

2.9 Portal type take-up with traversing stand                1 set

2.10 Mechanism transmission system                          1 set

2.11 Electric control system                                           1 set

2.12 Safety fence                                                           1 set

3. Technical parameters

4. Photo

5. Packing photo

6. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.

7. FAQ
− Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.

We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
