Rigid Stranding Machine for Wire/Cable Production – 6+12, Suitable for 630mm Reels
1.Application
This machine is mainly used for the non-torsion stranding of large-cross-section and long-length steel-cored aluminum strands (ACSR) and aluminum alloy conductors. It can also be applied to the non-torsion stranding and compacting of copper conductors with round, special-shaped, and sector-shaped cores
2.Main components
2.1 Φ630 Pay-off stand
2.2 #type wire guiding stand
2.3 6B,12B strander
2.4 Wire assemble die & compacting device
2.5 Meter counter(Mechanical, Electronic)
2.6 Φ 1600 strong double capstan
2.7 Φ 1800 column type take-up with traversing
2.8 Electric control system
2.9 Manual sliding protective cover
3. Technical Parameters
| Model (Rigid Stranding Machine) | JLK-630/6 | JLK-630/6＋12 | JLK-630/6＋12＋18＋24 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.8-5 mm | φ1.8-5 mm | φ1.8-5 mm | |
| Maximum stranded conductor OD | φ15 mm | φ25 mm | φ45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 60-500 mm | 60-500 mm | 60-500 mm |
| 12 Bobbin Stranding Cage | 75-560 mm | 75-560 mm | ||
| 18 Bobbin Stranding Cage | 92-680 mm | |||
| Rotating Speed | 6 Bobbin Stranding Cage | 258 r/min | 258 r/min | 258 r/min |
| 12 Bobbin Stranding Cage | 236 r/min | 236 r/min | ||
| 18 Bobbin Stranding Cage | 202 r/min | |||
| Capstan | Capstan Wheel Diameter | 1250 mm | 1600 mm | 2000 mm |
| Maximum Haul-off Force | 8 T | 10 T | 15 T | |
| Bobbin | PND630 | PND630 | PND630 | |
| Center Payoff Bobbin | PND630 | PND630 | PND630 | |
| Take-up Bobbin | 1800mm | 2500mm | 2500mm | |
| Maximum Haul-off Linear Speed | 35m/min | 40 m/min | 50 m/min | |
| Central Height | 1000 mm | 1100 mm | 1100 mm | |

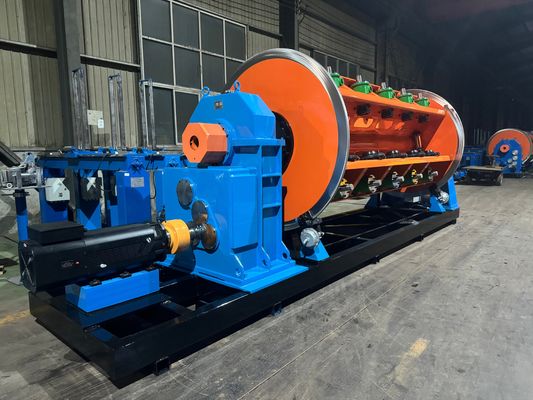

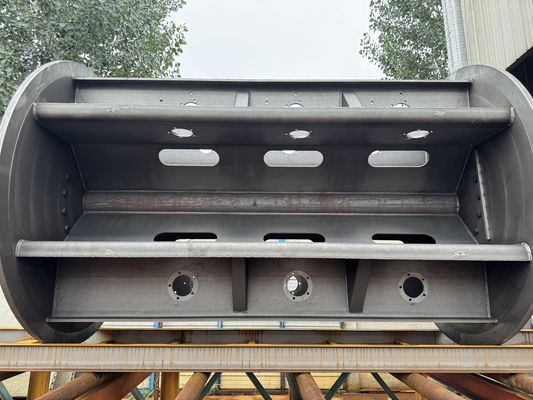

4. Photos
5. Packing photo
6. Our factory and company introduction
Hebei Baohong Electrical Machinery Co., Ltd. was founded on August 1, 2006. Located in the industrial zone of Shawa Township, Hebei City,which lies at the triangular center of Beijing, Tianjin and Shijiazhuang, the company enjoys convenient transportation and abundant iron and steel resources. Starting with the production of stranding machine series products, it has undergone 18 years of development.
By fully relying on talentadvantages and technical strength, the company continuously researches and develops new technologies and processes, achieving steady growth and gradually evolving into a comprehensive economic entity with advanced manufacturing technology, strong production capacity, and sales networks covering the whole country and overseas.
The company covers a factory area of 30,000 square meters, with more than 100 employees, including 12 mechanical and electrical engineers,and its processing equipment totals more than 60 million yuan. Currently, through the introduction of large-scale processing equipment and the research, development and improvement of processes, the company has become the only manufacturer in China that produces JLK cage stranding machine series units on an assembly line.
