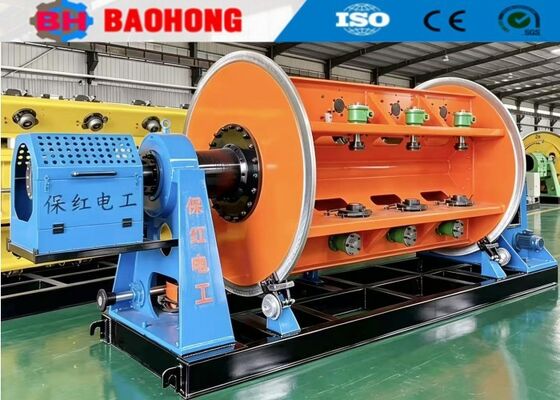

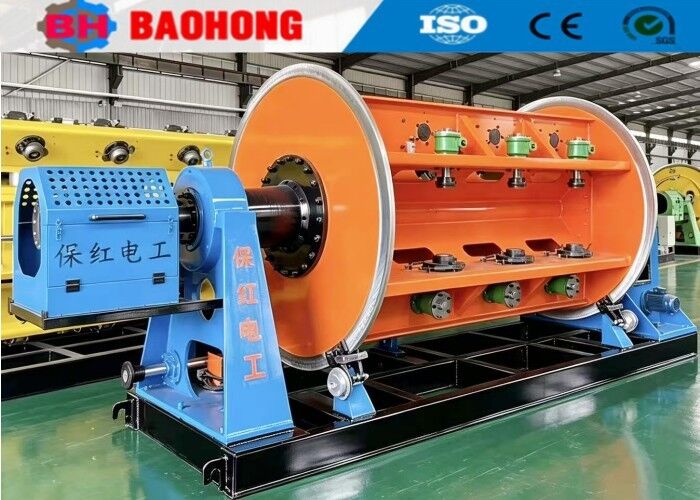

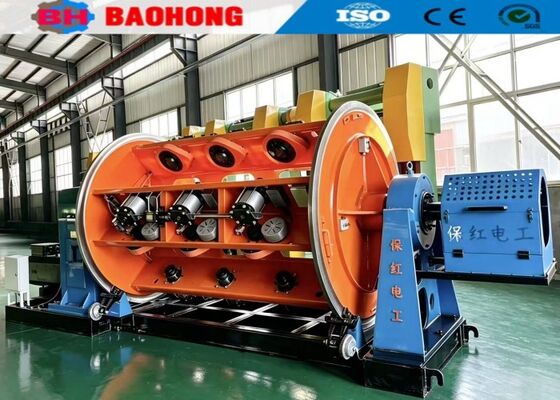

JLK High-Speed Rigid Frame Stranding Machine for Overhead Transmission Lines & ACSR

1.Rigid Stranding Machine Features

1.1 Non-Back-Twist Design: Engineered for armoring copper wires, round aluminum wires, pre-twisted sector conductors, and steel wires.

1.2 Flexible Loading Options: Side-loading and front-automatic loading mechanisms can be customized based on client site layout and specific requirements.

1.3 Precise Tension Control: Equipped with aerodynamic resistance and electromagnetic brakes to maintain consistent, reliable tension throughout production.

1.4 Independent Motor Drive: Features a ground-shaft transmission structure where each cage is driven by an independent motor with electrical synchronization.

1.5 Advanced HMI + PLC Control: Enables effortless pre-setting of stranding pitch and direction, automatic tension compensation, and seamless speed synchronization with the pulling capstan and take-up unit.

1.6 Comprehensive Safety Protections: Built-in safety features include wire-break (overline) protection and overvoltage protection.

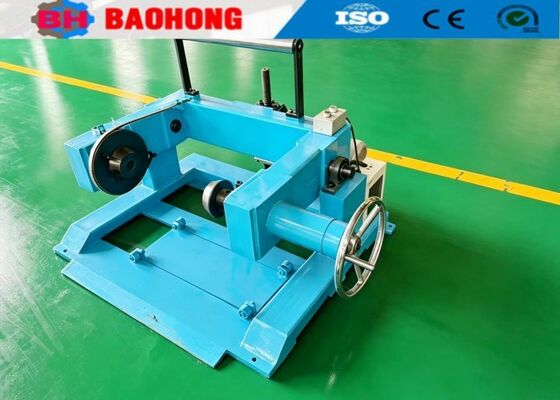

2.1Ø 500-630 central pay off stand                            1 set

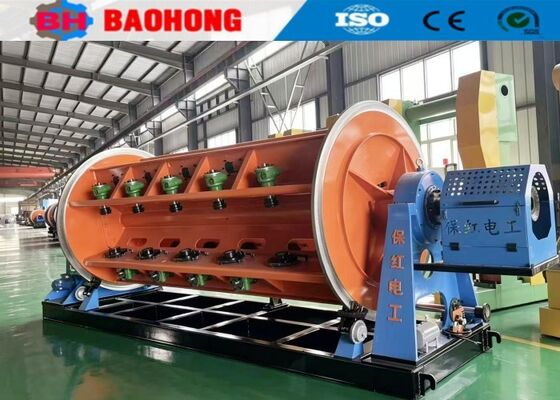

2.26B,12B ,18B,24B Rigid strander                    1set each

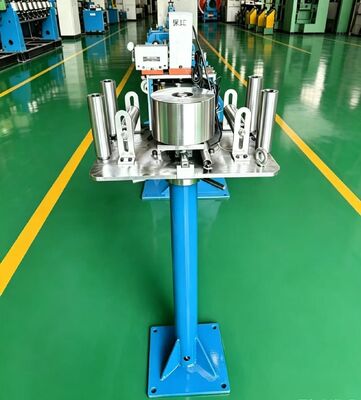

2.3Wire assembly compressing                                  4sets

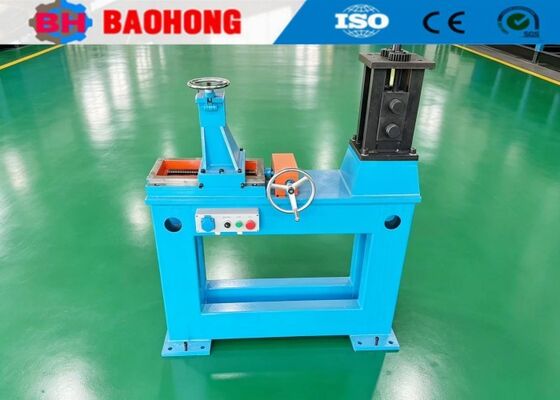

2.4Meter counter                                                         1set

2.5Ø2000 double initiative capstan                             1 set

2.6Ø2500 take-up stand with traverse                        1set

2.7Transmission system                                              1set

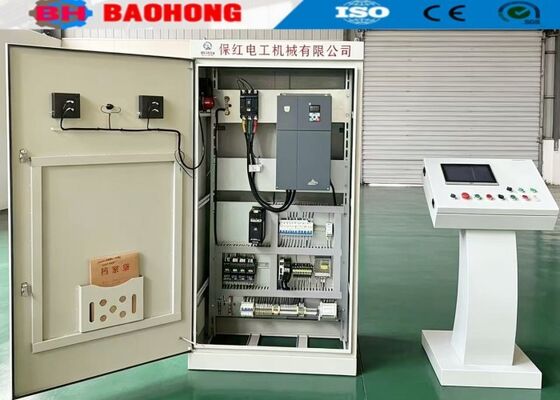

2.8Electric control system                                            1set

2.9Safety protection device (push-pull safety cover)   1set

2.10Ground shaft safety cover                                     1set

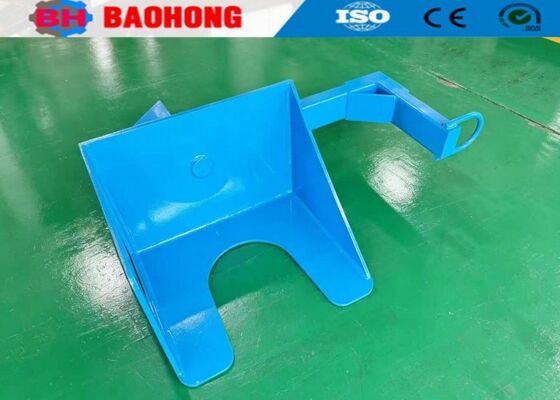

2.11Reel loading spreader                                           1set

2.12Pneumatic wrench                                                 1set

3. Features
3.1The machine is equipped with man-machine interface, and all operating parameters can be displayed and set in real time, which is intuitive and convenient.

3.2The actual rotating speed, capstan linear speed and other operating parameters of each strander can be displayed visually.

3.3The meter wheel is connected with the main control cabinet to set the meter for stopping.

3.4The disconnection alarm signal is transmitted wirelessly to effectively avoid confusion or failure of the transmission wire.

3.5Adopt cabinet type touch screen operation desk , which is convenient for operation and beautiful in form.

4. Technical Parameters

4.1Stranded single wire diameter

Copper wire                      Φ1.5～Φ5.0mm

Aluminum wire                  Φ1.8～Φ5.0mm

4.2Max. stranding OD      Φ45mm
4.3Stranding pitch

6B                                     50-720mm

12B                                   77-866mm

18B                                   99-998mm

24B                                  110-1118mm

4.4Rotating speed

6B                                    330r/min

12B                                  308r/min

18B                                  275 r/min

24B                                  252r/min

4.5Max .capstan linear speed        85.45m/min
4.6Capstan wheel diameter           Ø2000mm
4.7Reel in cage                              PND500
4.8Central pay off reel size            PN100～PN1600
4.9Take up reel                              PN1600～PN2500
4.10Main motor power                   75kW(AC motor with inverter)

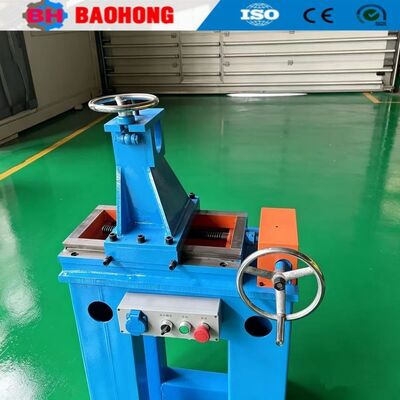

5. Photos

6. Packing photo

7. Our factory and company introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
