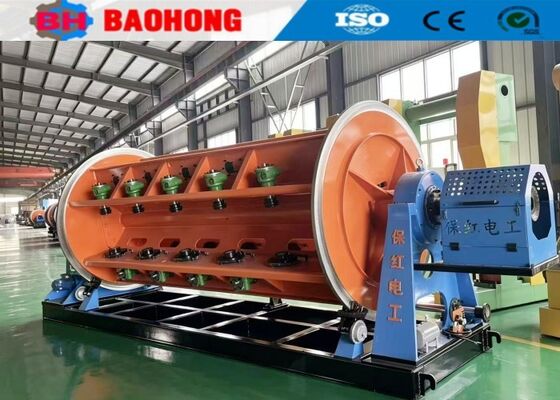

440V Cable Making Rigid Stranding Machine With Side Bottom Loading

It is used for the wring and compacting of fan-shaped conductor, wringing and drawing of circular conductor, and pre-wringing and wringing of conductor core. Mainly used for copper and aluminum conductor cables twisted wire system fan pressed,pressed and drawn round conductor segment conductor strands twisted pre-pressed.

2. Features

2.1 All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Take up are separately driven.

2.2 All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max.30 minutes.

2.3 Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.

2.4 Multiple bobbin size availa ble(500,630,710,etc)

2.5 Mutiple host with mutiple cage number((6.12.18.24.30)) optional.

3. Electric transmission and control system

3.1 Power supply :                                                   According to customer requirements

3.2 Ambient temperature:                                        ≤40℃

3.3 The main motor is driven by AC variable frequency motor and controlled by inverter.

3.4 Inverter:                                                             Siemens

3.5 Main low-voltage electrical components :          Siemens

3.6 Motor :                                                                Siemens

3.7 PLC,touch screen                                               Siemens

4. Main technical data

5. Photos

6. Packing photo

7. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
