Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Wire Mesh Cable Armouring Machine | Materials: | Steel |
|---|---|---|---|
| Condition: | New | Bobbin Sizes: | 400 Mm, 500 Mm, 630 Mm ,etc |
| Wire Diameter: | 1.5-2.5mm | Power(630): | 75kw |
| Capstan Wheel Diameter (500/400): | 2000 Mm | Color: | Optional |
| Highlight: | 4mm Wire Cable Stranding Machine,Steel Wire Mesh Rigid Strander,Armouring Wire Twisting Machine |
||

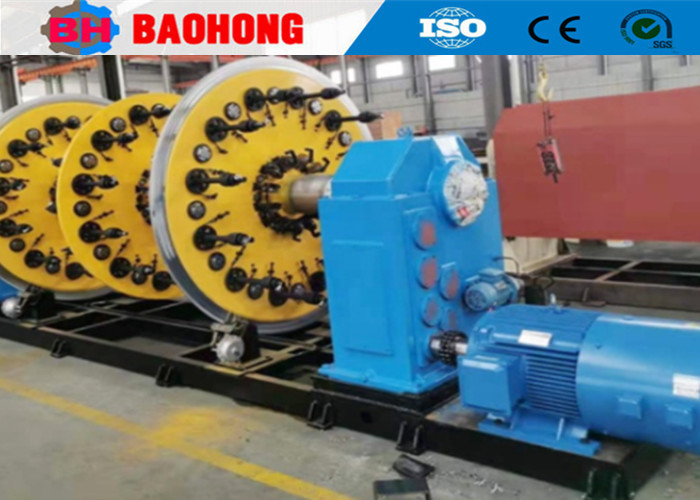

Steel Wire Mesh Cable Armouring Machine Dia 4mm For Twisting
1. Application
This machine is mainly used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables. and also armouring single or double steel wire around the cable, or manufacturing large section of steel wire ropes.
2. Characteristics
2.1 Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm
2.2 Bobbin quantity of single cage : From 6 bobbin to 48 bobbin
2.3 Clamping : Pneumatic type clamping ,Motor clamping ,Manual Clamping
2.4 Tension control : Hysteresis tension control , Mechanical tension control
2.5 Mechanical tension control with feedback , Pneumatic tension control
2.6 Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading ,Side loading
3. Technical parameters
Model (Steel Wire Armoring Machine) |
JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Steel wire diameter | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | |
| Maximum stranded OD | 40 mm | 55 mm | 60 mm | 70 mm | |
| Stranding Pitch | 24 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 |
36 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
42 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
| 48 Bobbin Stranding Cage | 38-752 | 51-942 | 63- 1144 | 500-4120 | |
| Rotate Speed | 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 68 .3 r/min | 55 r/min |
| 36 Bobbin Stranding Cage | 88 r/min | 80 r/min | 58 .3 r/min | 45 r/min | |
| 42 Bobbin Stranding Cage | 78 r/min | 70 r/min | 48 .3 r/min | 35 r/min | |
| 48 Bobbin Stranding Cage | 68 r/min | 60 r/min | 38 .3 r/min | 28 r/min | |
Capstan |
Capstan Wheel Diameter | 1600 mm | 2000 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10T | 15T | 15T | 20T | |
Motor Power |
45 KW | 55 KW | 55 KW | 75 KW | |
Bobbins |
315 mm | 400 mm | 500 mm | 630 mm | |
Center Payoff Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Take- up Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Maximum Haul-off Linear Speed |
25 m/min | 30 m/min | 34 .7 m/min | 45 m/min | |
Center Height |
1000 mm | 1000 mm | 1000 mm | 1100 mm | |
4. Photos
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Located in Hejian Economic Development Zone, Hebei Province, our company is the largest professional manufacturer of stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
